Canadian Solar Panel HiKu6 (All-Black) ALL BLACK MONO PERC 380 W ~ 405 W CS6R-380 |385 |390 |395 |400 |405MS

Short Description:

MORE POWER

Module power up to 405 W
Module efficiency up to 20.7 %

Lower LCOE & system cost

Comprehensive LID / LeTID mitigation technology, up to 50% lower degradation

Better shading tolerance

Send email to us

Product Detail

Product Tags

MORE RELIABLE

Minimizes micro-crack impacts

Heavy snow load up to 5400 Pa, wind load up to 2400 Pa*

* For detailed information, please refer to the Installation Manual.

Enhanced Product Warranty on Materials and Workmanship*

Linear Power Performance Warranty*

1st year power degradation no more than 2%

Subsequent annual power degradation no more than 0.55%

*According to the applicable Canadian Solar Limited Warranty Statement.

MANAGEMENT SYSTEM CERTIFICATES*

ISO 9001:2015 / Quality management system
ISO 14001:2015 / Standards for environmental management system
ISO 45001: 2018 / International standards for occupational health & safety

PRODUCT CERTIFICATES*

IEC 61215 / IEC 61730 / CE
UL 61730 / IEC 61701 / IEC 62716
Take-e-way

48-pcs-mono-cell-210-~-230-W-1

* The specific certificates applicable to different module types and markets will vary, and therefore not all of the certifications listed herein will simultaneously apply to the products you order or use. Please contact your local Canadian Solar sales representative to confirm the specific certificates available for your product and applicable in the regions in which the products will be used.

CSI Solar Co., Ltd. is committed to providing high quality solar photovoltaic modules, solar energy and battery storage solu- tions to customers. The company was recognized as the No. 1 module supplier for quality and performance/price ratio in the IHS Module Customer Insight Survey. Over the past 20 years, it has successfully delivered over 63 GW of premium-quality solar modules across the world.

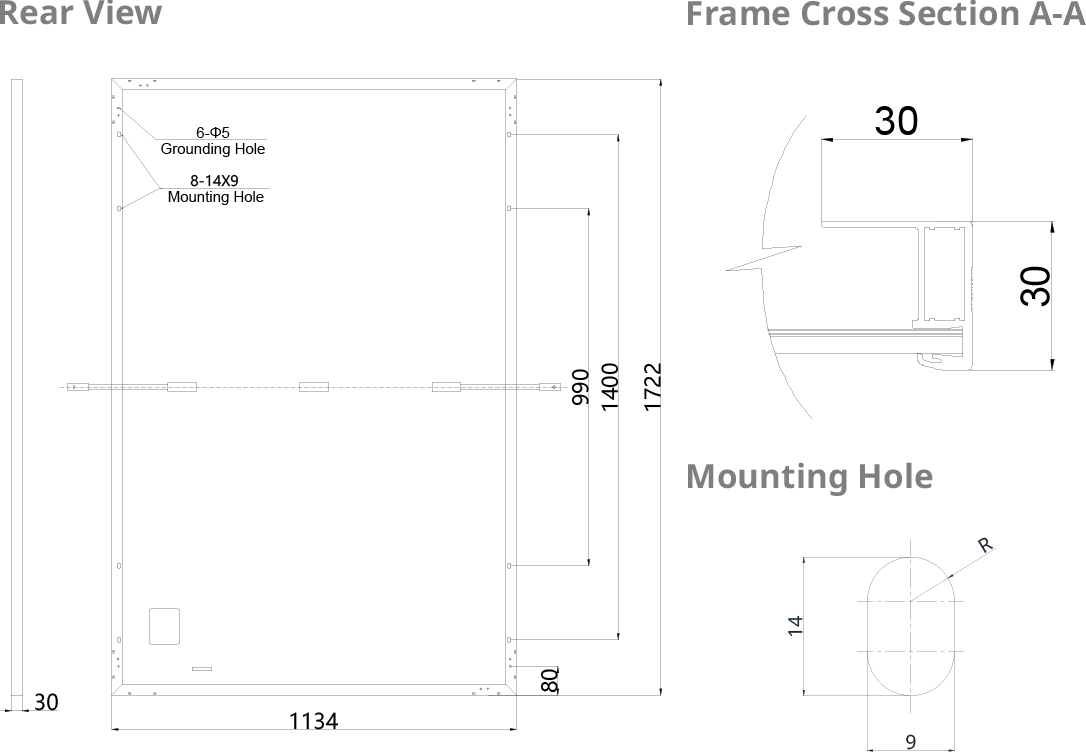

ENGINEERING DRAWING (mm)

product-description1

ELECTRICAL DATA | STC*

CS6P-270/275/280/285/290P-PLUS

CS6R 380MS 385MS 390MS 395MS 400MS 405MS

Nominal Max. Power (Pmax) 380 W 385 W 390 W 395 W 400 W 405 W
Opt. Operating Voltage (Vmp)30.0 V 30.2 V 30.4 V 30.6 V 30.8 V 31.0 V
Opt. Operating Current (Imp) 12.69 A 12.77 A 12.84 A 12.91 A 12.99 A 13.07 A
Open Circuit Voltage (Voc)	36.0 V 36.2 V 36.4 V 36.6 V 36.8 V 37.0 V
Short Circuit Current (Isc)	13.55 A 13.63 A 13.70 A 13.77 A 13.85 A 13.93 A
Module Efficiency	19.5% 19.7% 20.0% 20.2% 20.5% 20.7%
Operating Temperature	-40°C ~ +85°C
Max. System Voltage	1500V (IEC/UL) or 1000V (IEC/UL)
Module Fire Performance	TYPE 1 (UL 61730 1500V) or TYPE 2 (UL 61730 1000V) or CLASS C (IEC 61730)
Max. Series Fuse Rating	25 A
Application Classification	Class A
Power Tolerance	0 ~ + 10 W
* Under Standard Test Conditions (STC) of irradiance of 1000 W/m2, spectrum AM 1.5 and cell tempe- rature of 25°C.

ELECTRICAL DATA | NMOT*

CS6R 380MS 385MS 390MS 395MS 400MS 405MS

Nominal Max. Power (Pmax) 284 W 288 W 291 W 295 W 299 W 303 W
Opt. Operating Voltage (Vmp)28.1 V 28.3 V 28.4 V 28.6 V 28.8 V 29.0 V
Opt. Operating Current (Imp) 10.12 A 10.19 A 10.26 A 10.33 A 10.39 A 10.45 A
Open Circuit Voltage (Voc)	33.9 V 34.1 V 34.2 V 34.4 V 34.6 V 34.7 V
Short Circuit Current (Isc)	10.91 A 10.98 A 11.05 A 11.11 A 11.17 A 11.23 A

* Under Nominal Module Operating Temperature (NMOT), irradiance of 800 W/m2, spectrum AM 1.5, ambient temperature 20°C, wind speed 1 m/s.

* The specifications and key features contained in this datasheet may deviate slightly from our actual products due to the on-going innovation and product enhancement. CSI Solar Co., Ltd. reserves the right to make necessary adjustment to the information described herein at any time without further notice.
Please be kindly advised that PV modules should be handled and installed by qualified people who have professional skills and please carefully read the safety and installation instructions before using our PV modules.

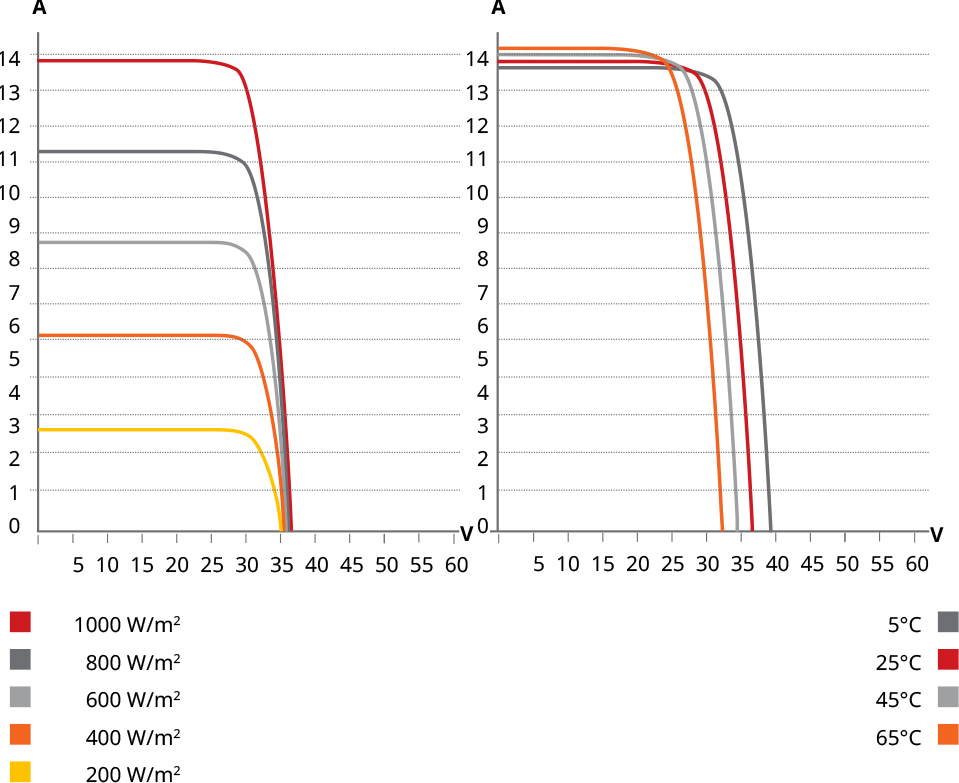

CS6R-400MS / I-V CURVES

product-description2

MECHANICAL DATA

Specification	Data
Cell Type	Mono-crystalline
Cell Arrangement	108 [2 X (9 X 6) ]
Dimensions	1722 ˣ 1134 ˣ 30 mm (67.8 ˣ 44.6 ˣ 1.18 in)
Weight	21.3 kg (47 0 lbs)
Front Cover	3.2 mm tempered glass with anti- reflective coating
Frame	Anodized aluminium alloy,
J-Box	IP68, 3 bypass diodes
Cable	4 mm2 (IEC), 12 AWG (UL)
Connector	MC4 or MC4-EVO2
Cable Length (Including Connector)	Portrait: 410 mm (16.1 in) (+) / 290 mm (11.4 in) (-); landscape: 1100 mm (43 3 in)*
Per Pallet	35 pieces
Per Container (40' HQ)	910 pieces

* For detailed information, please contact your local Canadian Solar sales and technical representatives.

TEMPERATURE CHARACTERISTICS

Specification	Data
Temperature Coeﬃcient (Pmax)	-0.34 % / °C
Temperature Coeﬃcient (Voc)	-0.26 % / °C
Temperature Coeﬃcient (Isc)	0.05 % / °C
Nominal Module Operating Temperature	41 ± 3°C
