BJ48-100 48V 100AH Lithium Ion Battery bank with Build-in BMS
New Design
- BMS can be replaced easily
- Wall mounted & Stack on ground with hidden cable port
- Accurate display by LCD coulomb meter
Application Places
For areas without urban power, the battery pack can be charged by solar panels, working with inverters, to provide 220V power supply for household use; for areas where urban power is expensive, the battery pack can be charged by solar power or city power during the day, and Electricity is supplied during times when electricity is expensive. The battery pack can also be used as a UPS to avoid information loss and emergency power supply caused by sudden power failure. Battery packs are suitable for commercial use, industrial and domestic power supply, agricultural power needs, and more.
Advantages
Ultra-thin wall-mounted design, the bottom can bear weight, easy to install with a small crane. All screw holes are built in, the appearance is stylish and simple, and all wiring parts can be hidden in the bottom space.
Using lithium iron phosphate BYD brand new original battery pack, the cycle life is up to 4000 times, and the life span is more than 12 years.
Dust-proof structure design, DC output, safe and reliable. The BMS compartment is easy to replace.
Integrated dangerous goods standard packaging, safe and convenient transportation.
Technical Parameters
Model: BJ48-100
Rated voltage: 51.2V
Standard capacity: 100Ah
Continuously use input current: 80A
Continuously use output current: 80A
Charging voltage: 57.6V-60V
Cut-off: 2.5V single cell
Self-Discharge( 25℃): ＜3％/month
Depth of discharge: Up to 95％
Charge method ( CC/CV ):Operation： -20℃—70℃;
Recommendation: 10℃—45℃
Cycle life: 6000 times
Warranty: 5years
Size : 673*468*166mm
New BYD LiFePO4 cell

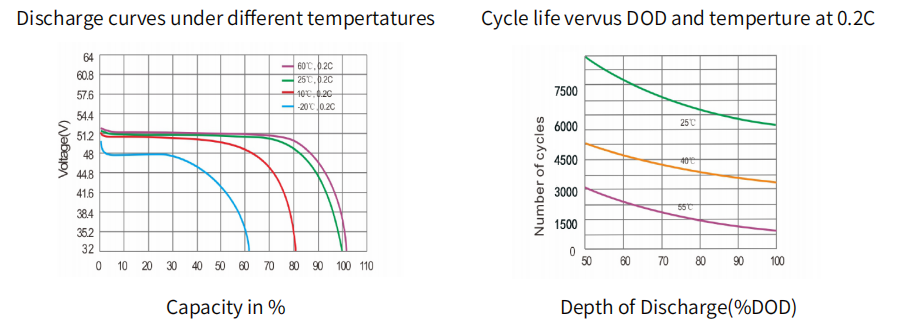

Electrical Characteristics
Float charge voltage/V: 55.2
Max. continue discharge current/A: 100
Max. pulse discharge current/A: 150A 1Sec.
Max. continue chargecurrent/A: 50
Operating conditions
Cycle life (+25℃ 0.2C 100%DOD): >6000 Cycles
Storage temperature: 0 to 30℃
Storage duration: 6 months at 25℃
Safety standard: UN38.3,IEC62619,CE
IP Degree: IP20
BMS
1.Various protection functions for charging and discharging2.Hardware discharge over - current, short - circuit protection function processing3.Reserve discharge control switch and discharge temperature protection position4.Very low static consumption current5.Smart : communication interface RS485, RS232, CAN
Storage and Transportation
According to the characteristics of the cells, it is necessary to create a suitable environment for the transportation of lithium iron phosphate battery packs to protect the batteries. The battery should be stored in a dry, clean and well-ventilated warehouse at -20℃-45℃.
The battery pack can only be square or wall mounted vertically. When installing the battery, be careful not to fall or tip over.
