JA 565W MBB Half-cell Module JAM72S30 540-565/GR
Remark: customized frame color and cable length available upon request

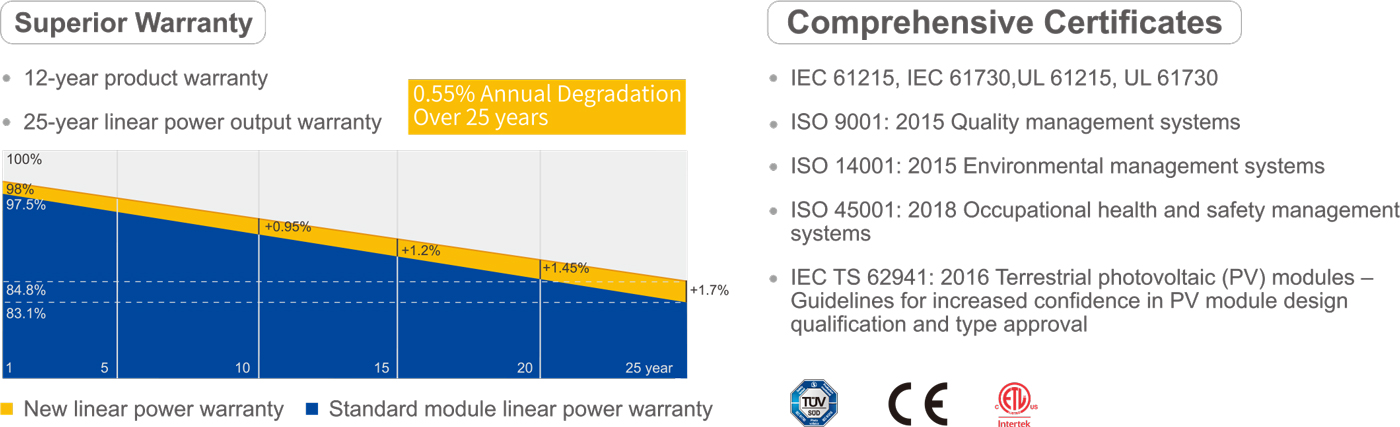

SPECIFICATIONS
| Cell |
Mono |
| Weight |
28.6kg±3% |

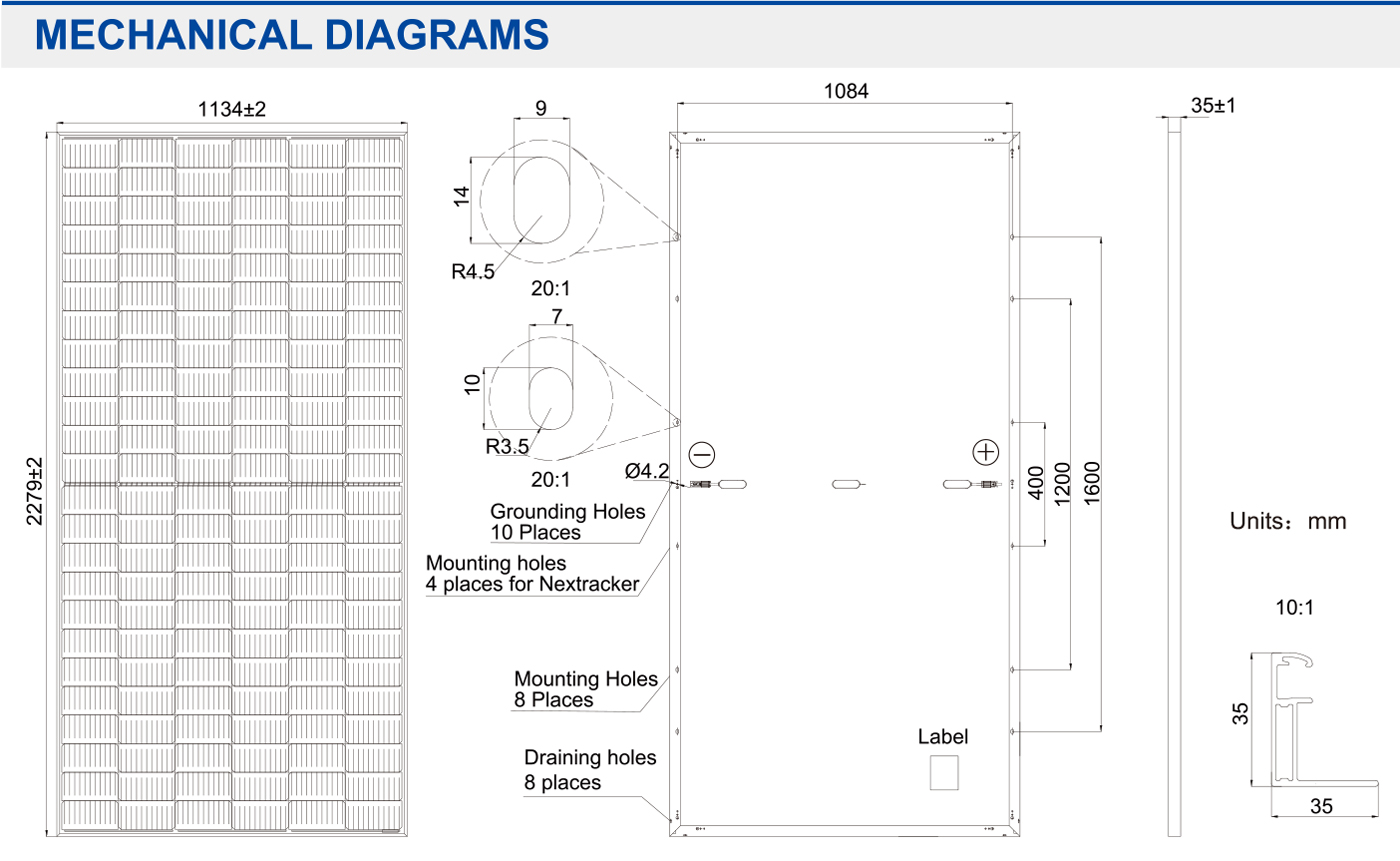

| Dimensions |
2279±2mmxl 134±2mm*35±1 mm |
| Cable Cross Section Size |
4mm2 (IEC) , 12AWG(UL) |
| No. of cells |
144(6x24) |
| Junction Box |
IP68, 3 diodes |
| Connector |
QC4.10(1000V) QC 4.10-35(1500V) |
| Cable Length (Including Connector) | Portrait: 300mm(+)/400mm(-);
Landscape: 1300mm(+)/1300mm(-) |
| Packaging Configuration |
31pcs/Pallet 620pcs/40HQ Container |
ELECTRICAL PARAMETERS AT STC
| TYPE |
JAM72S30 -540/GR |
JAM72S30 -545/GR |
JAM72S30 -550/GR |
JAM72S30 -555/GR |
JAM72S30 -560/GR |
JAM72S30 -565/GR |
| Rated Maximum Power(Pmax) [W] |
540 |
545 |
550 |
555 |
560 |
565 |
| Open Circuit Voltage(Voc) [V] | 49.60 |
49.75 |
49.90 |
50.02 |
50.15 |
50.28 |
| Maximum Power Voltage(Vmp) [V] | 41.64 |
41.80 |
41.96 |
42.11 |
42.27 |
42.42 |
| Short Circuit Current(lsc) [A] | 13.86 |
13.93 |
14.00 |
14.07 |
14.14 |
14.21 |
| Maximum Power Current(lmp) [A] | 12.97 |
13.04 |
13.11 |
13.18 |
13.25 |
13.32 |
| Module Efficiency [%] |
20.9 |
21.1 |
21.3 |
21.5 |
21.7 |
21.9 |
| Power Tolerance |
0~+5W |
|||||
| Temperature Coefficient of Isc(ajsc) | +0.045%°C | |||||
| Temperature Coeificient of Vbc(3_Voc) | -0.275%/°C | |||||
| Temperature Coefficient of Pmax(v_Pmp) | -0.350%/°C |
Remark: Electrical data in this catalog do not refer to a single module and they are not part of the offer.They only serve for comparison among different module types.

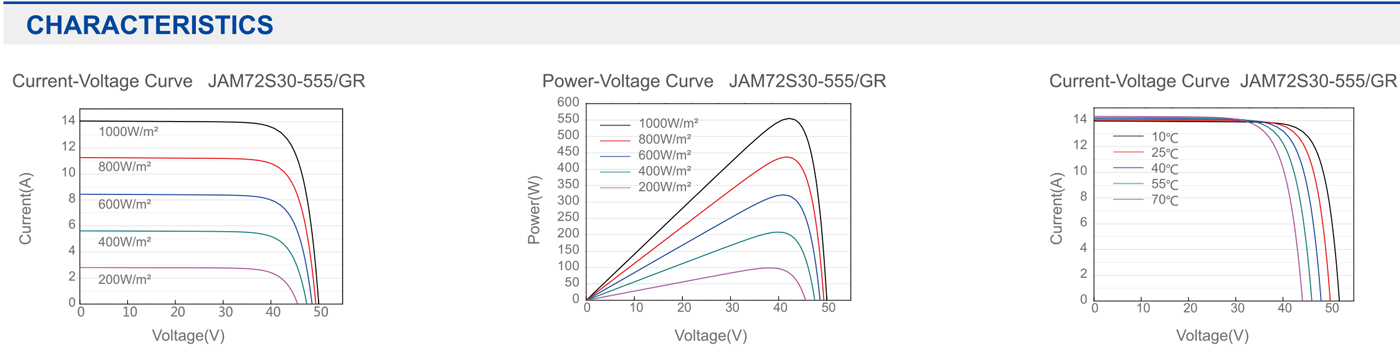

| ELECTRICAL PARAMETERS AT NOCT |
OPERATING CONDITIONS |
|||||||
| TYPE |
JAM72S30 -540/GR |
JAM72S30 -545/GR |
JAM72S30 -550/GR |
JAM72S30 -555/GR |
JAM72S30 -560/GR |
JAM72S30 -565/GR |
Maximum System Voltage | 1000V/1500V DC |
| Rated Max Power(Pmax) [W] |
408 |
412 |
416 |
420 |
424 | 428 | Operating Temperature | -40C-+85C |
| Open Circuit Voltage(Voc) [V] | 46.43 | 46.55 | 46.68 |
46.85 |
46.99 | 47.15 | Maximum Series Fuse Rating | 25A |
| Max Power Voltage(Vmp) [V] | 38.99 | 39.20 | 39.43 |
39.66 |
39.85 | 40.04 | Maximum Static Load,Front* Maximum Static Load,Back* | 5400Pa(112lb/ft2)
2400Pa(50lb/ft2) |
| Short Circuit Current(lsc) [A] | 11.09 | 11.13 | 11.17 |
11.21 |
11.26 | 11.31 | NOCT | 45±2C |
| Max Power Current(lmp) [A] | 10.47 | 10.51 | 10.55 |
10.59 |
10.64 | 10.69 | Safety Class | Class II |
| NOCT | Irradiance 800W/m2, ambient temperature 20°C,wind speed 1m/s, AM1.5G | Fire Performance | UL Type 1 | |||||
