JA 505W MBB Half-cell Module JAM66S30 480-505/MR
Remark: customized frame color and cable length available upon request

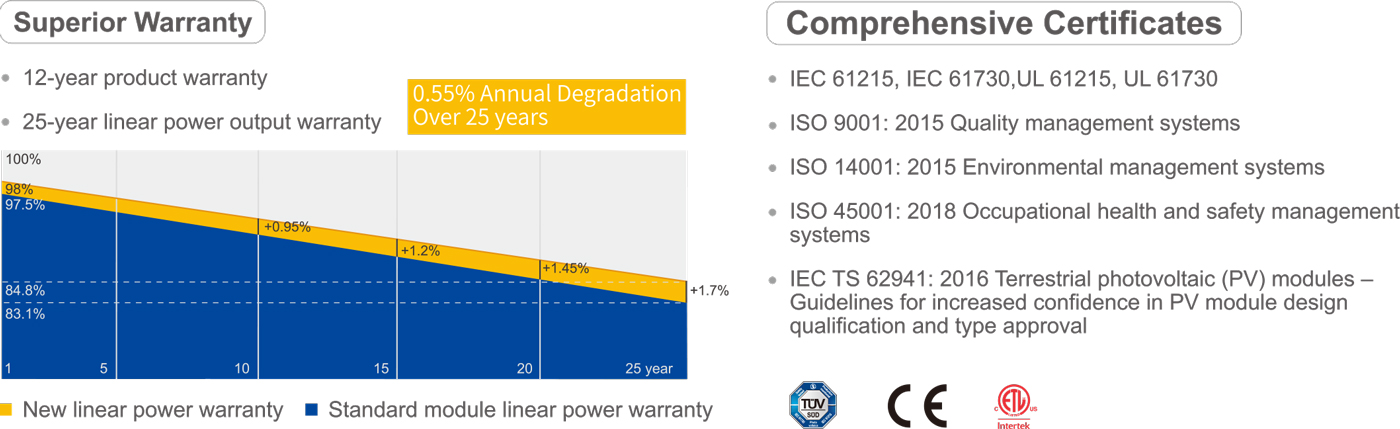

SPECIFICATIONS
| Cell |
Mono |
| Weight | 26.3kg±3% |

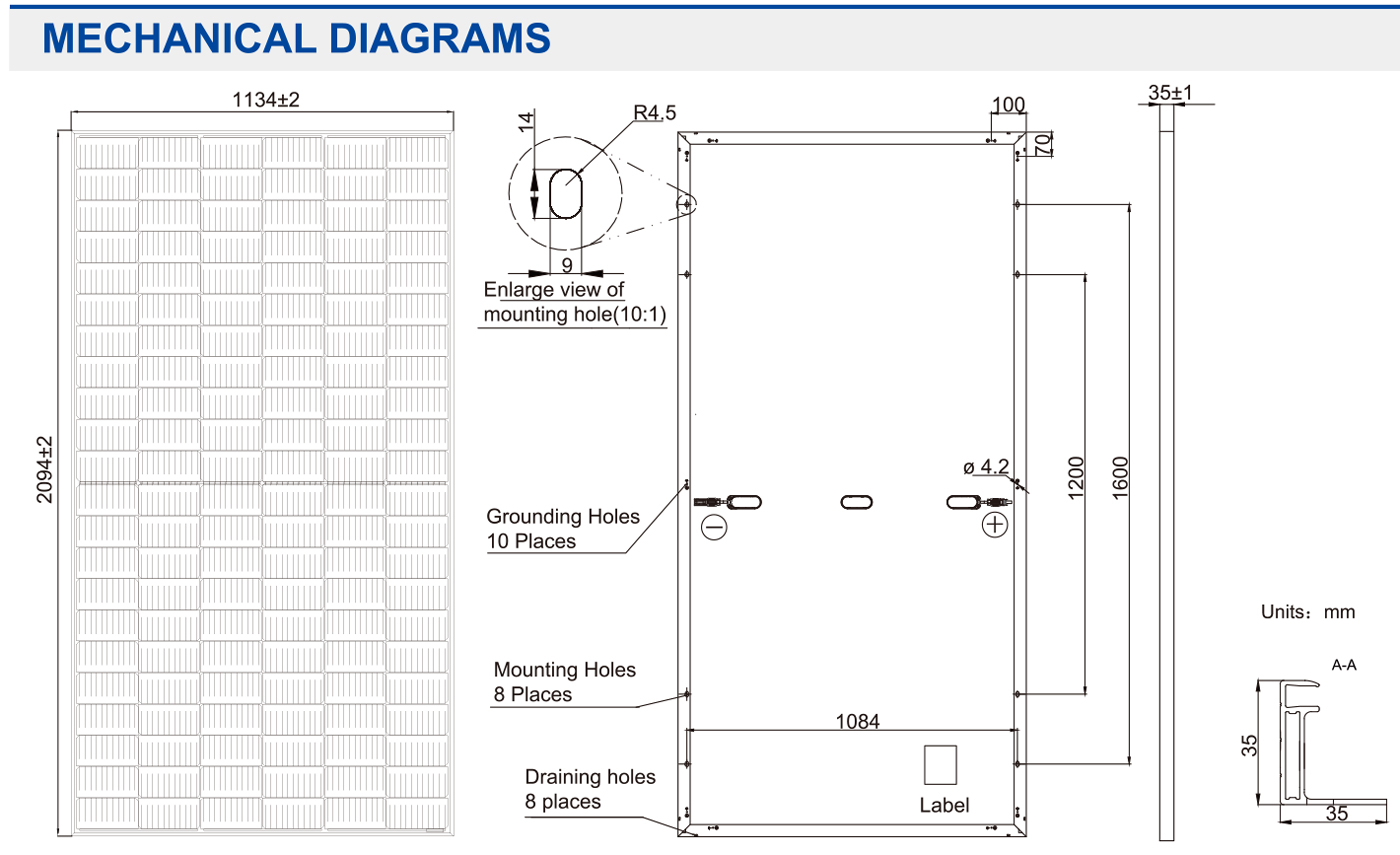

| Dimensions |
2094±2mmx1134±2mm*35±1 mm |
| Cable Cross Section Size | 4mm2 (IEC) , 12AWG(UL) |
| No. of cells |
132(6x22) |
| Junction Box | IP68, 3 diodes |
| Connector | QC4.10(1000V)
QC 4.10-35(1500V) |
| Cable Length (Including Connector) | Portrait: 300mm(+)/400mm(-);
Landscape: 1200mm(+)/1200mm(-) |
| Packaging Configuration | 31pcs/Pallet, 682pcs/40ft Container |
ELECTRICAL PARAMETERS AT STC
| TYPE |
JAM66S30 -480/MR |
JAM66S30 -485/MR |
JAM66S30 -490/MR |
JAM66S30 -495/MR |
JAM66S30 -500/MR |
JAM66S30 -505/MR |
| Rated Maximum Power(Pmax) [W] | 480 |
485 |
490 | 495 | 500 | 505 |
| Open Circuit Voltage(Voc) [V] | 45.07 | 45.20 | 45.33 | 45.46 | 45.59 | 45.72 |
| Maximum Power Voltage(Vmp) [V] | 37.62 | 37.81 | 37.99 | 38.17 | 38.35 | 38.53 |
| Short Circuit Current(lsc) [A] | 13.65 | 13.72 | 13.79 | 13.86 | 13.93 | 14.00 |
| Maximum Power Current(lmp) [A] | 12.76 | 12.83 | 12.90 | 12.97 | 13.04 | 13.11 |
| Module Efficiency [%] | 20.2 |
20.4 |
20.6 | 20.8 | 21.1 | 21.3 |
| Power Tolerance | 0-+5W | |||||
| Temperature Coefficient of Isc(ajsc) | +0.045%°C | |||||
| Temperature Coeificient of Vbc(3_Voc) | -0.275%/°C | |||||
| Temperature Coefficient of Pmax(v_Pmp) | -0.350%/°C | |||||
| STC | Irradiance 1000W/m2, cell temperature 25°C, AM1.5G | |||||
Remark: Electrical data in this catalog do not refer to a single module and they are not part of the offer.They only serve for comparison among different module types.
|

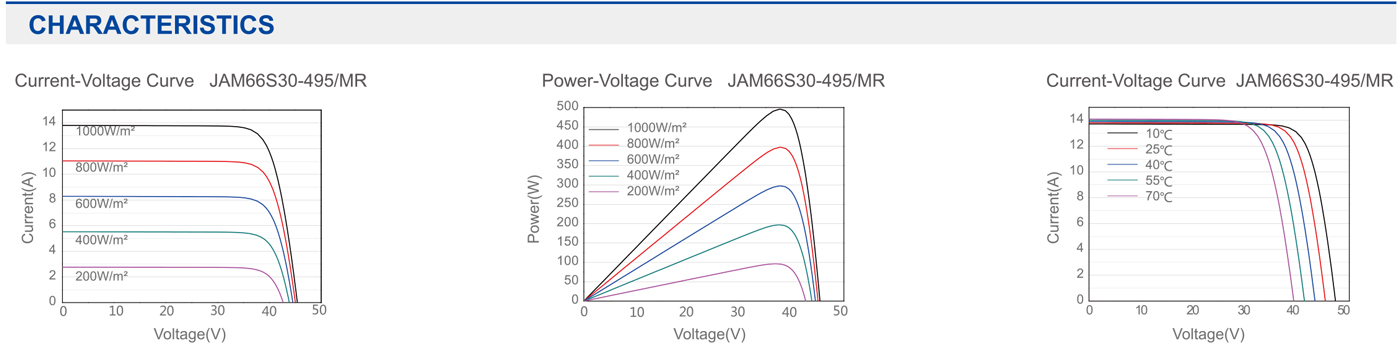

ELECTRICAL PARAMETERS AT NOCT |
OPERATING CONDITIONS |
|||||||
| “PE JAM66S30
-480/MR |
JAM66S30 JAM66S30 ■485/MR -490/MR |
JAM66S30 -495/MR |
JAM66S30 JAM66S30 -500/MR -505/MR |
Maximum System Voltage | 1000V/1500V DC | |||
| Rated Max Power(Pmax) [W] 363 | 367 | 370 | 374 |
378 |
382 | Operating Temperature | -40C~+85'C | |
| Open Circuit Voltage(Voc) [V] 42.15 | 42.30 | 42.43 |
42.58 |
42.72 |
42.86 | Maximum Series Fuse Rating | 25A | |
| Max Power Voltage(Vmp) [V] 35.54 | 35.67 | 35.76 |
35.84 |
35.93 |
36.02 |
Maximum Static Load,Front* Maximum Static Load,Back* |
5400Pa(112lb/ft2)
2400Pa(50lb/ft2) |
|
| Short Circuit Current(lsc) [A] 10.99 | 11.06 | 11.13 |
11.20 |
11.27 | 11.34 | NOCT | 45±2C | |
| Max Power Current(lmp) [A] 10.21 | 10.28 | 10.36 |
10.44 |
10.52 |
10.60 | Safety Class | Class II | |
| NOCT Irradiance 800W/m2, ambient temperature 20°C,wind speed 1m/s, AM1.5G | Fire Performance | UL Type 1 | ||||||
