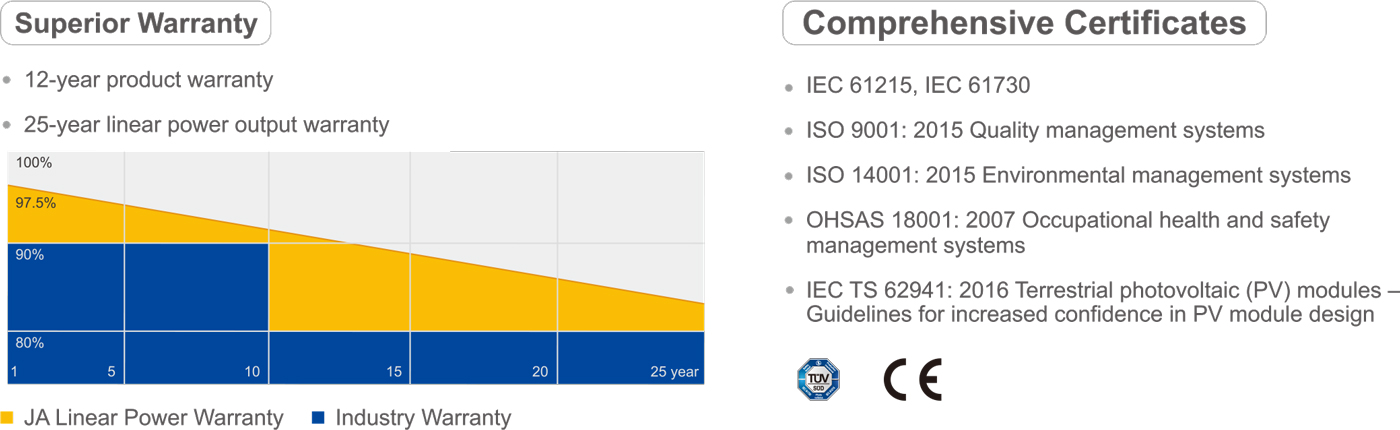

Remark: customized frame color and cable length available upon request
Cell |
Mono |
Weight |
24.6kg±3% |

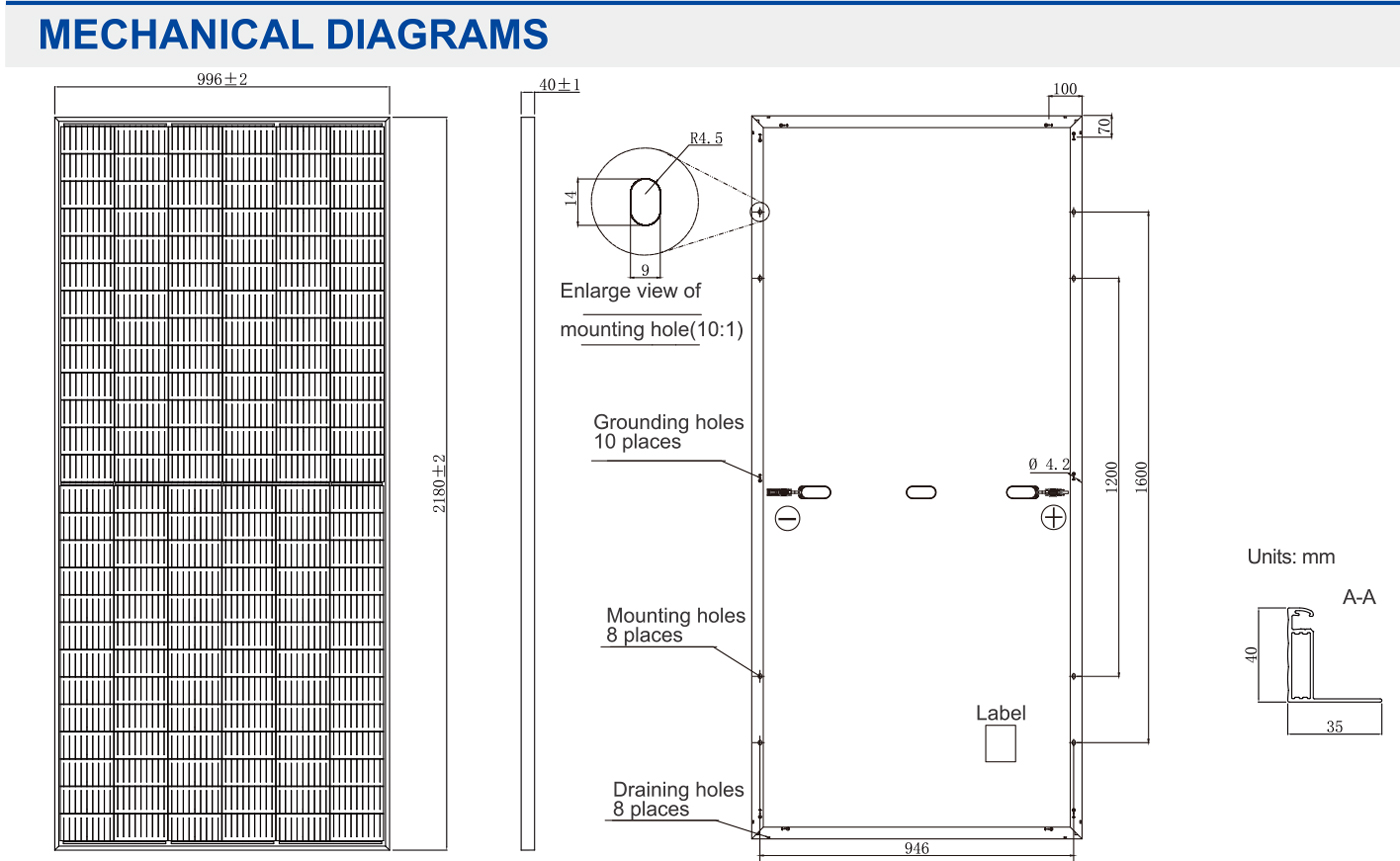

Dimensions | 2180±2mmx996±2mmx40±1 mm |
Cable Cross Section Size |
4mm2 |
No. of cells | 156(6x26) |
Junction Box |
IP68, 3 diodes |
Connector |
QC4.10(1000V) QC 4.10-35(1500V) |
Cable Length | Portrait:300m m(+)/400mm(-); |
(Including Connector) Landscape: 1200mm(+)/1200mm(-) |
|
Packaging Configuration | 27 Per Pallet |
TYPE |
JAM78S10 -435/MR |
JAM78S10 -440/M R |
JAM78S10 -445/MR |
JAM78S10 -450/MR |
JAM78S10 ■455/MR |
Rated Maximum Power(Pmax) [W] |
435 |
440 |
445 | 450 | 455 |
Open Circuit Voltage(Voc) [V] | 52.73 | 53.00 | 53.31 |
53.58 |
53.87 |
Maximum Power Voltage(Vmp) [V] | 44.50 | 44.87 | 45.18 |
45.51 |
45.83 |
Short Circuit Current(lsc) [A] | 10.40 | 10.44 | 10.48 |
10.52 |
10.56 |
Maximum Power Current(lmp) [A] |
9.78 |
9.81 |
9.85 |
9.89 |
9.93 |
Module Efficiency [%] |
20.0 |
20.3 |
20.5 |
20.7 |
21.0 |
Power Tolerance | 0-+5W | ||||
Temperature Coefficient of Isc(ajsc) | +0.044%/°C | ||||
Temperature Coefficient of Vbc(0_Voc) | -0.272%/°C | ||||
Temperature Coefficient of Pmax(v_Pmp) | -0.350%/°C |
Remark: Electrical data in this catalog do not refer to a single module and they are not part of the offer.They only serve for comparison among different module types.
ELECTRICAL PARAMETERS AT NOCT |
OPERATING CONDITIONS |
||||||
TYPE |
JAM78S10 -435/MR |
JAM78S10 -440/MR |
JAM78S10 -445/MR |
JAM78S10 -450/MR |
JAM78S10 -455/MR |
Maximum System Voltage | 1000V/1500V DC(IEC) |
Rated Max Power(Pmax) [W] | 330 |
334 |
338 |
342 | 346 | Operating Temperature | -40°C~+85°C |
Open Circuit Voltage(Voc) [V] | 50.45 | 50.66 |
50.86 |
51.11 | 51.38 | Maximum Series Fuse | 20A |
Max Power Voltage(Vmp) [V] | 41.03 |
41.28 |
41.57 |
41.86 | 42.14 | Maximum Static Load,Front | 5400Pa |
Short Circuit Current(lsc) [A] | 8.43 | 8.48 |
8.53 |
8.57 | 8.61 | Maximum Static Load,Back | 2400Pa |
Max Power Current(lmp) [A] | 8.04 | 8.09 |
8.13 |
8.17 | 8.21 | NOCT | 45±2°C |

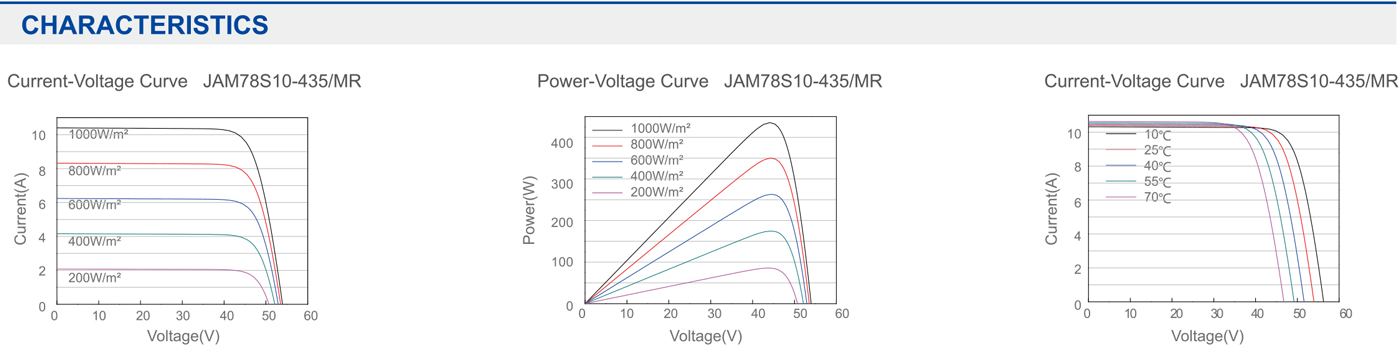

NOCT |
Irradiance 800W/m2, ambient temperature 20°C, wind speed 1m/s, AM1.5G |
Safety Class | Glass H |
