JA 420W MBB Half-Cell Module JAM72S10 400-420/MR™
Remark: customized frame color and cable length available upon request

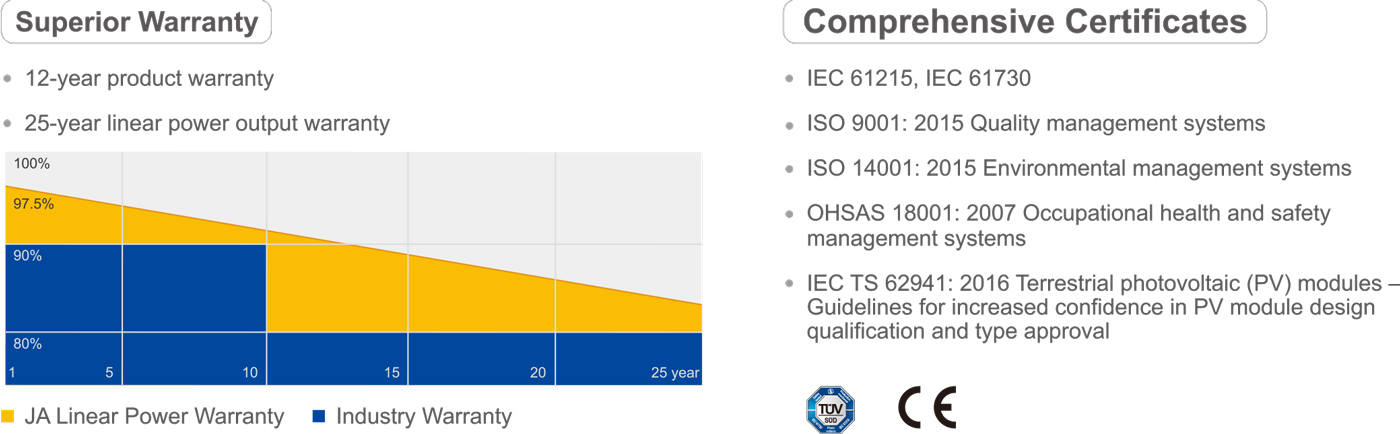

SPECIFICATIONS
| Cell | Mono |
| Weight | 22.7kg±3% |

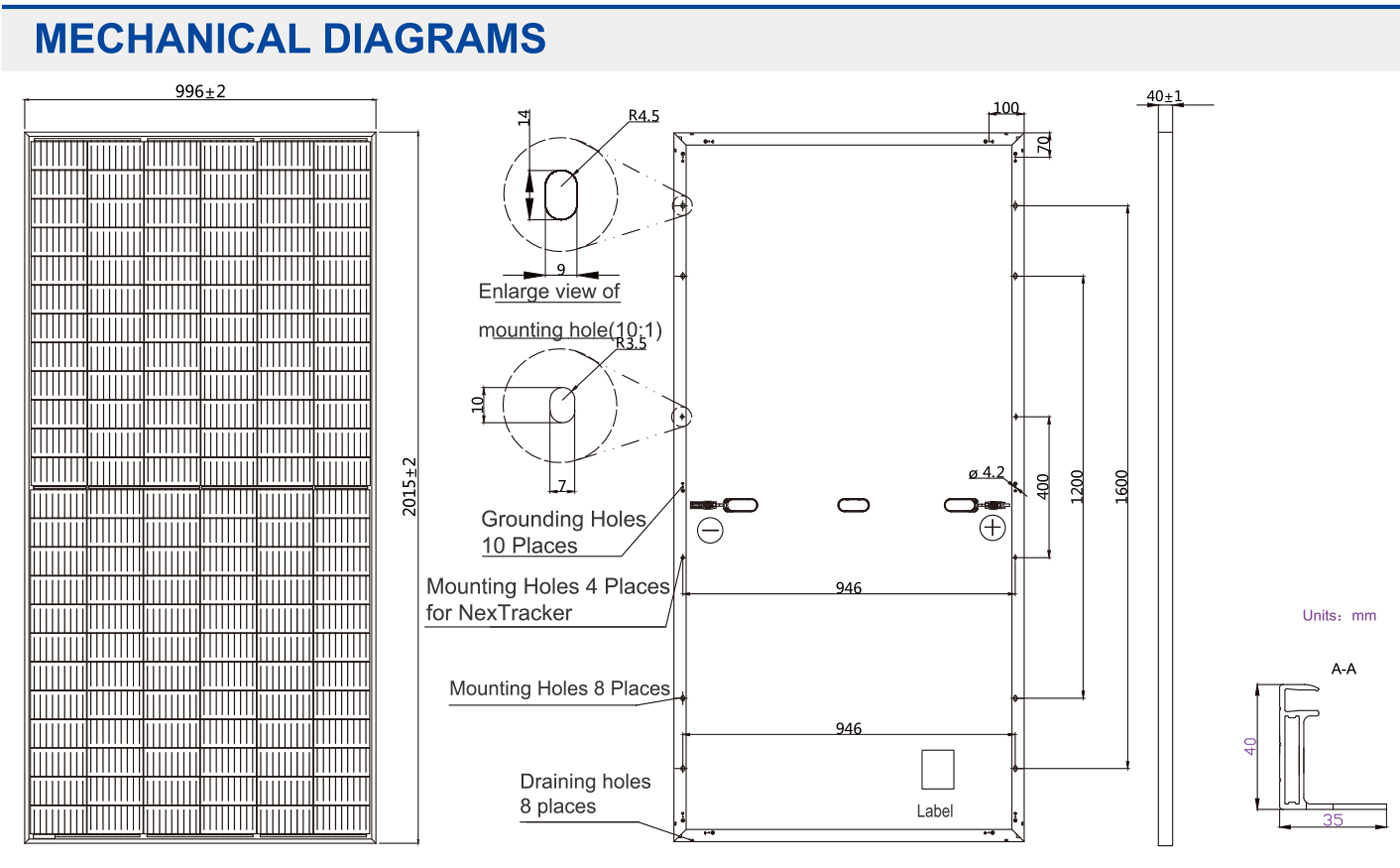

| Dimensions |
2015±2mmx996±2mm*40±1 mm |
|
Cable Cross Section Size 4mm2 |
|
| No. of cells | 144 (6x24) |
| Junction Box | IP68, 3 diodes |
| Connector | QC4.10(1000V)
QC 4.10-35(1500V) |
| Cable Length (Including Connector) | Portrait: 300mm(+)/400mm(-);
Landscape: 1200mm(+)/1200mm(-) |
| Packaging Configuration | 27 Per Pallet |

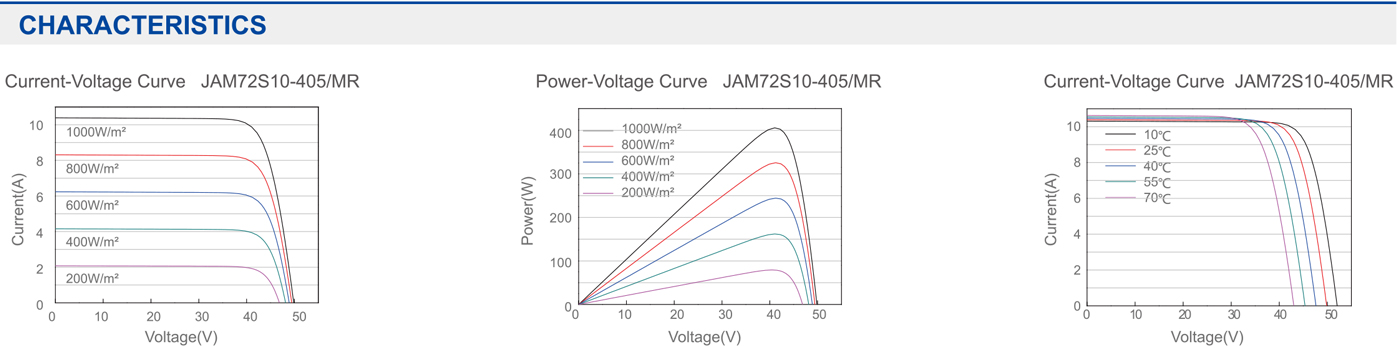

ELECTRICAL PARAMETERS AT STC
| TYPE |
JAM72S10 -400/MR |
JAM72S10 ■405/MR |
JAM72S10 -410/MR |
JAM72S10 ■415/M R |
JAM72S10 -420/MR |
| Rated Maximum Power(Pmax) [W] |
400 |
405 | 410 | 415 | 420 |
| Open Circuit Voltage(Voc) [V] |
49.58 |
49.86 | 50.12 | 50.41 | 50.70 |
| Maximum Power Voltage(Vmp) [V] |
41.33 |
41.60 | 41.88 | 42.18 | 42.47 |
| Short Circuit Current(lsc) [A] |
10.33 |
10.39 | 10.45 | 10.51 | 10.56 |
| Maximum Power Current(lmp) [A] |
9.68 |
9.74 |
9.79 | 9.84 | 9.89 |
| Module Efficiency [%] |
19.9 |
20.2 | 20.4 |
20.7 |
20.9 |
| Power Tolerance | 0-+5W | ||||
| Temperature Coefficient of Isc(ajsc) | +0.044%/°C | ||||
| Temperature Coeificient of Vbc(3_Voc) | -0.272%/°C | ||||
| Temperature Coefficient of Pmax(v_Pmp) | -0.350%/C | ||||
| STC | Irradiance 1000W/m2, cell temperature 25°C, AM1.5G | ||||
Remark: Electrical data in this catalog do not refer to a single module and they are not part of the offer.They only serve for comparison among different module types. *For NexTracker installations static loading performance: front load measures 2400Pa, while back load measures 2400Pa.
| ELECTRICAL PARAMETERS AT NOCT |
OPERATING CONDITIONS |
||||||
| TYPE |
JAM72S10 -400/MR |
JAM72S10 -405/MR |
JAM72S10 -410/MR |
JAM72S10 -415/MR |
JAM72S10 -420/MR |
Maximum System Voltage | 1000V/1500V DC(IEC) |
| Rated Max Power(Pmax) [W] | 302 |
306 |
310 | 314 | 318 | Operating Temperature | -40°C~+85°C |
| Open Circuit Voltage(Voc) [V] | 46.41 | 46.66 | 46.91 | 47.16 | 47.38 | Maximum Series Fuse | 20A |
| Max Power Voltage(Vmp) [V] | 38.65 | 38.90 | 39.16 | 39.41 | 39.60 | Maximum Static Load,Front* | 5400Pa |
| Short Circuit Current(lsc) [A] | 8.25 | 8.31 | 8.36 | 8.41 | 8.46 | Maximum Static Load,Back* | 2400Pa |
| Max Power Current(lmp) [A] | 7.81 | 7.87 | 7.92 | 7.97 | 8.03 | NOCT | 45±2°C |
| NOCT |
Irradiance 800W/m2, ambient temperature 20°C, wind speed 1 m/s, AM1.5G |
Safety Class | Glass H | ||||
