JA 420W MBB Half-cell Module JAM54S30 395-420/MR
Remark: customized frame color and cable length available upon request

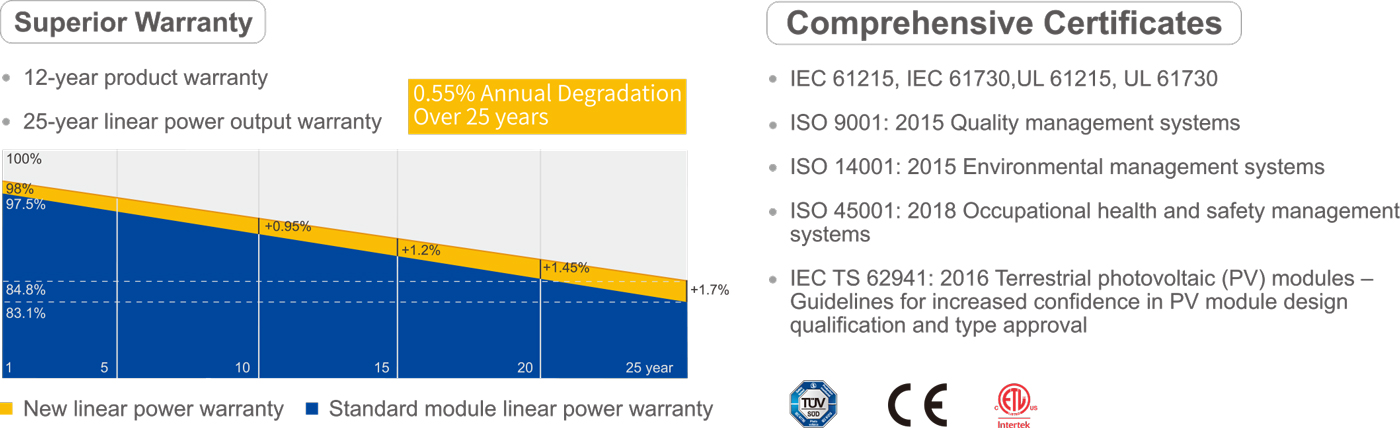

SPECIFICATIONS
| Cell |
Mono |
| Weight |
21.5kg±3% |

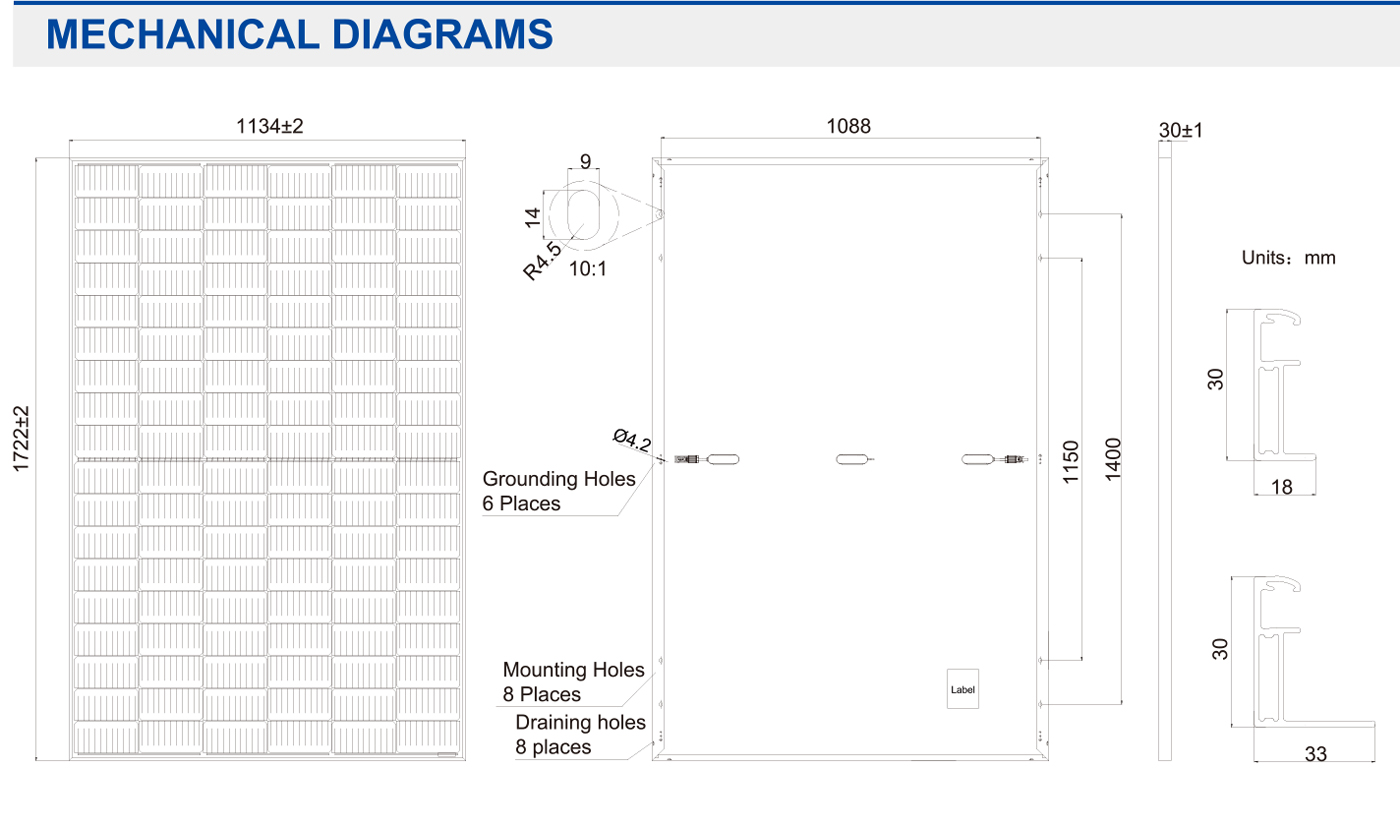

| Dimensions |
1722±2mmxll 34±2mm*30±1 mm |
| Cable Cross Section Size | 4mm2 (IEC) , 12AWG(UL) |
| No. of cells |
108(6x18) |
| Junction Box | IP68, 3 diodes |
| Connector | QC4.10(1000V)
QC 4.10-35(1500V) |
| Cable Length (Including Connector) | Portrait: 300mm(+)/400mm(-);
Landscape: 1200mm(+)/1200mm(-) |
| Packaging Configuration | 36pcs/Pallet, 936pcs/40ft Container |
| ELECTRICAL PARAMETERS AT STC | ||||||
| TYPE |
JAM54S30 -395/MR |
JAM54S30 -400/MR |
JAM54S30 -405/MR |
JAM54S30 -410/MR |
JAM54S30
-415/MR |
JAM54S30 -420/MR |
| Rated Maximum Power(Pmax) [W] |
395 |
400 |
405 |
410 |
415 | 420 |
| Open Circuit Voltage(Voc) [V] |
36.98 |
37.07 |
37.23 |
37.32 | 37.45 | 37.58 |
| Maximum Power Voltage(Vmp) [V] |
30.84 |
31.01 |
31.21 |
31.45 | 31.61 | 31.80 |
| Short Circuit Current(lsc) [A] |
13.70 |
13.79 |
13.87 |
13.95 | 14.02 | 14.10 |
| Maximum Power Current(lmp) [A] |
12.81 |
12.90 |
12.98 |
13.04 | 13.13 | 13.21 |
| Module Efficiency [%] |
20.2 |
20.5 |
20.7 |
21.0 |
21.3 | 21.5 |
| Power Tolerance |
0~+5W |
|||||
| Temperature Coefficient of Isc(ajsc) | +0.045%°C | |||||
| Temperature Coeificient of Vbc(3_Voc) | -0.275%/°C | |||||
| Temperature Coefficient of Pmax(Y_Pmp) | -0.350%/°C | |||||
| STC | Irradiance 1000W/m2, cell temperature 25°C, AM1.5G | |||||
Remark: Electrical data in this catalog do not refer to a single module and they are not part of the offer.They only serve for comparison among different module types.

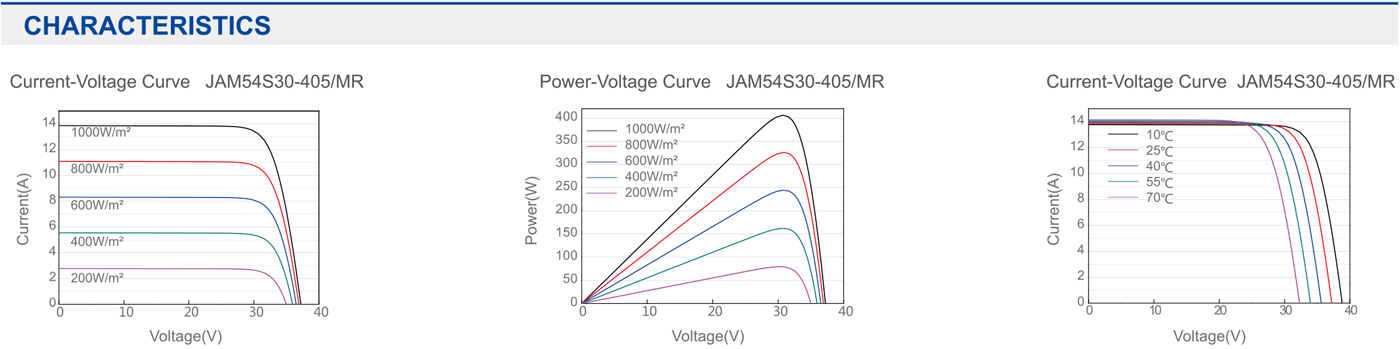

| ELECTRICAL PARAMETERS AT NOCT |
OPERATING CONDITIONS |
|||||||
| TYPE |
JAM54S30 -395/MR |
JAM54S30 -400/MR |
JAM54S30 ■405/MR |
JAM54S30 -410/MR |
JAM54S30 -415/MR |
JAM54S30 -420/MR |
Maximum System Voltage | 1000V/1500V DC |
| Rated Max Power(Pmax) [W] |
298 |
302 |
306 |
310 |
314 |
318 | Operating Temperature | -40C-+85C |
| Open Circuit Voltage(Voc) [V] | 34.75 | 34.88 |
35.12 |
35.23 |
35.37 | 35.50 | Maximum Series Fuse Rating | 25A |
| Max Power Voltage(Vmp) [V] | 29.08 | 29.26 |
29.47 |
29.72 |
29.89 | 30.09 |
Maximum Static Load,Front Maximum Static Load,Back |
5400Pa(112lb/ft2)
2400Pa(50lb/ft2) |
| Short Circuit Current(lsc) [A] | 10.96 | 11.03 |
11.10 |
11.16 |
11.22 | 11.29 | NOCT | 45±2C |
| Max Power Current(lmp) [A] | 10.25 | 10.32 |
10.38 |
10.43 |
10.50 | 10.57 | Safety Class | Class II |
| NOCT |
Irradiance 800W/m2, ambient temperature 20°C,wind speed 1m/s, AM1.5G |
Fire Performance | UL Type 1 | |||||
