JA 350W MBB Half-Cell Module JAM60S10 330-350/MR™
Remark: customized frame color and cable length available upon request
SPECIFICATIONS
| Cell |
Mono |
| Weight |
18.7kg±3% |

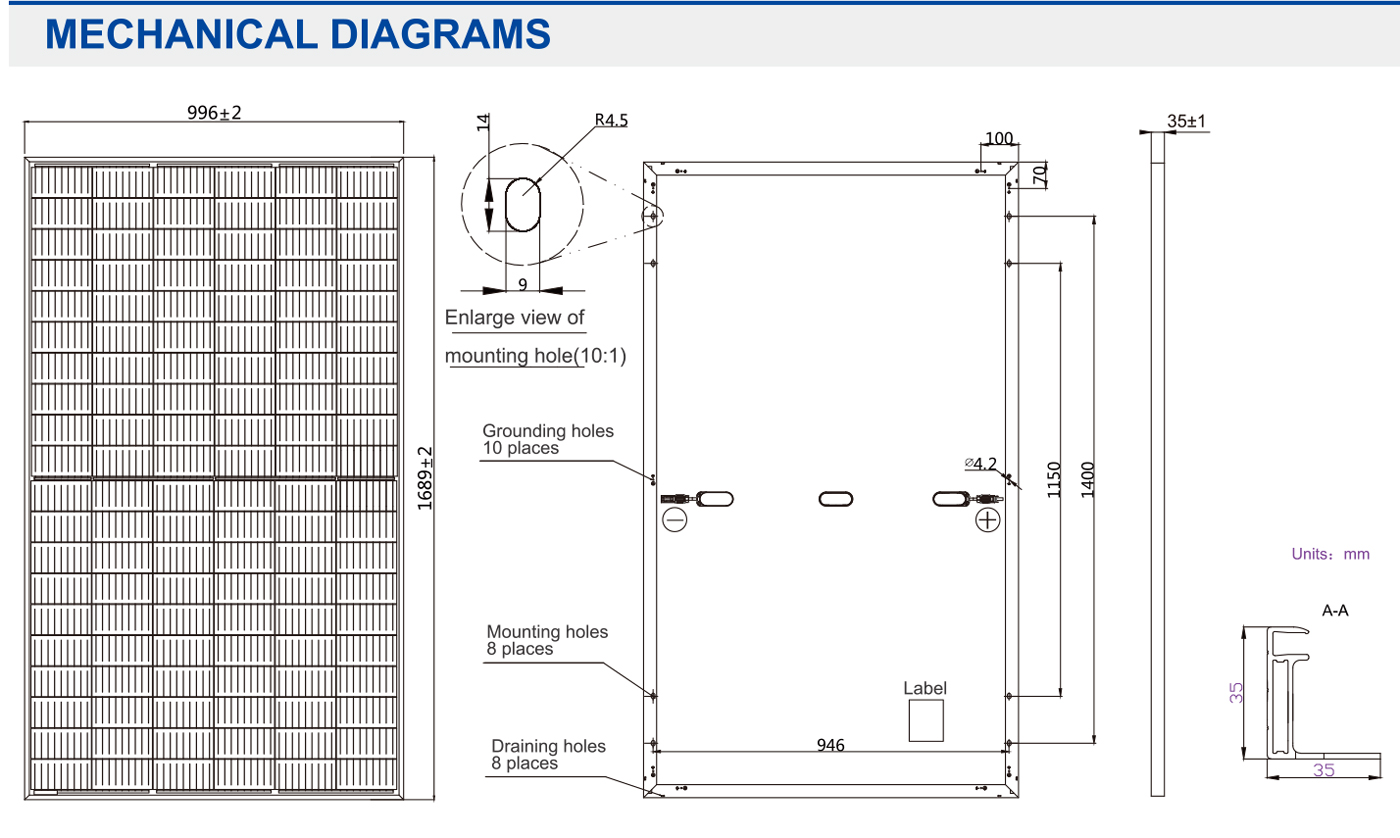

| Dimensions | 1689±2mmx996±2mmx35±1 mm |
| Cable Cross Section Size |
4mm2 |
| No. of cells | 120(6x20) |
| Junction Box |
IP68, 3 diodes |
| Connector |
QC4.10(1000V) QC 4.10-35(1500V) |
| Cable Length | Portrait:300mm(+)/400mm(-); |
| Packaging Configuration | 31 Per Pallet |
ELECTRICAL PARAMETERS AT STC
| TYPE |
JAM60S10 -330/M R |
JAM60S10 -335/MR |
JAM60S10 -340/MR |
JAM60S10 -345/MR |
JAM60S10 -350/MR |
| Rated Maximum Power(Pmax) [W] | 330 |
335 |
340 |
345 | 350 |
| Open Circuit Voltage(Voc) [V] | 41.08 |
41.32 |
41.55 | 41.76 | 42.02 |
| Maximum Power Voltage(Vmp) [V] | 34.24 |
34.48 |
34.73 | 34.99 | 35.25 |
| Short Circuit Current(lsc) [A] | 10.30 |
10.38 |
10.46 | 10.54 | 10.62 |
| Maximum Power Current(lmp) [A] | 9.64 |
9.72 |
9.79 |
9.86 | 9.93 |
| Module Efficiency [%] | 19.6 |
19.9 |
20.2 |
20.5 | 20.8 |
| Power Tolerance | 0-+5W | ||||
| Temperature Coefficient of Isc(ajsc) |
+0.044%/°C |
||||
| Temperature Coefficient of Vbc(0_Voc) |
-0.272%/°C |
||||
| Temperature Coefficient of Pmax(v_Pmp) |
-0.350%/°C |
||||
| STC |
Irradiance 1000W/m2, cell temperature 25°C, AM1.5G |
||||
Remark: Electrical data in this catalog do not refer to a single module and they are not part of the offer.They only serve for comparison among different module types.
| ELECTRICAL PARAMETERS AT NOCT |
OPERATING CONDITIONS |
||||||
| TYPE |
JAM60S10 -330/M R |
JAM60S10 -335/MR |
JAM60S10 -340/MR |
JAM60S10 -345/MR |
JAM60S10 -350/MR |
Maximum System Voltage | 1000V/1500V DC(IEC) |
| Rated Max Power(Pmax) [W] | 249 |
253 |
257 |
261 |
265 | Operating Temperature | -40°C~+85°C |
| Open Circuit Voltage(Voc) [V] | 38.46 |
38.68 |
38.90 |
39.09 |
39.31 | Maximum Series Fuse | 20A |
| Max Power Voltage(Vmp) [V] | 32.02 |
32.21 |
32.40 |
32.61 |
32.84 | Maximum Static Load,Front | 5400Pa |
| Short Circuit Current(lsc) [A] | 8.21 |
8.28 |
8.35 |
8.42 |
8.49 | Maximum Static Load,Back | 2400Pa |
| Max Power Current(lmp) [A] | 7.78 |
7.85 |
7.93 |
8.00 |
8.07 | NOCT | 45±2°C |
| NOCT |
Irradiance 800W/m2, ambient temperature 20°C, wind speed 1m/s, AM1.5G |
Safety Class | Glass H | ||||
