JA 350W Half-Cell Module JAP72S10 330-350/SC

Short Description:

The modules assembled with half cells not only generate more power output, but also perform better during daily operation as a result of lower temperature coefficient of power, along with reduced shading effect on the energy generation, lower risk of hot spot, and enhanced tolerance for mechanical loading.

Higher output power

Lower temperature coefficient

Less shading effect

Better mechanical loading tolerance

Send email to us

Product Detail

Product Tags

product-description1

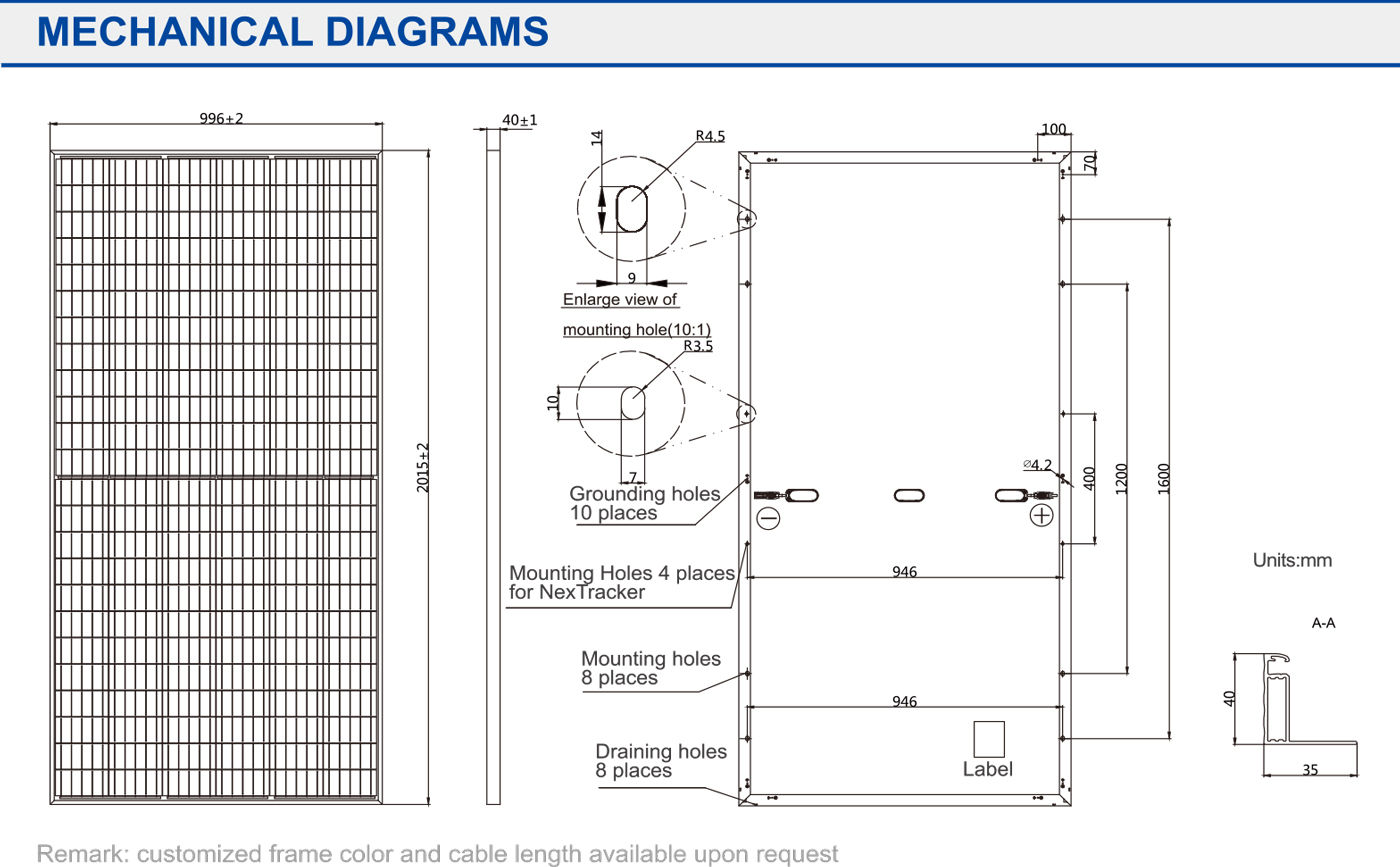

Remark: customized frame color and cable length available upon request

SPECIFICATIONS

Cell	Poly
Weight	22.7kg±3%
Dimensions	2015±2mmx996±2mm*40±1 mm
Cable Cross Section Size	4mm²
No. of cells	144 (6x24)
Junction Box	IP68, 3 diodes
Connector	QC 4.10(1000V) QC 4.10-35(1500V)
Cable Length	Portrait:300mm(+)/400mm(-);
(Including Connector) Landscape: 1200mm(+)/1200mm(-)

ELECTRICAL PARAMETERS AT STC

TYPE	JAP72S10 -330/SC	JAP72S10 -335/SC	JAP72S10 -340/SC	JAP72S10 -345/SC	JAP72S10 -350/SC
Rated Maximum Power(Pmax) [W]	330	335	340	345	350
Open Circuit Voltage(Voc) [V]	45.54	45.73	45.89	46.07	46.27
Maximum Power Voltage(Vmp) [V]	37.72	37.90	38.08	38.25	38.43
Short Circuit Current(lsc) [A]	9.26	9.35	9.43	9.50	9.58
Maximum Power Current(lmp) [A]	8.75	8.84	8.93	9.02	9.11
Module Efficiency [%]	16.4	16.7	16.9	17.2	17.4
Power Tolerance			0-+5W
Temperature Coefficient of Isc(ajsc)			+0.054%/C
Temperature Coefficient of Vbc(0_Voc)			-0.300%/C
Temperature Coefficient of Pmax(v_Pmp)			-0.370%/C
STC		Irradiance 1000W/m², cell temperature 25°C_J AM1.5G

Remark: Electrical data in this catalog do not refer to a single module and they are not part of the offer.They only serve for comparison among different module types.

ELECTRICAL PARAMETERS AT NOCT						OPERATING CONDITIONS
TYPE	JAP72S10 -330/SC	JAP72S10 -335/SC	JAP72S10 -340/SC	JAP72S10 -345/SC	JAP72S10 -350/SC	Maximum System Voltage	1000V/1500V DC(IEC)
Rated Max Power(Pmax) [W]	244	248	252	256	260	Operating Temperature	-40°C~+85°C
Open Circuit Voltage(Voc) [V]	43.98	44.17	44.35	44.51	44.66	Maximum Series Fuse	20A
Max Power Voltage(Vmp) [V]	35.36	35.53	35.69	35.85	36.01	Maximum Static Load,Front*	5400Pa
Short Circuit Current(lsc) [A]	7.35	7.43	7.51	7.59	7.67	Maximum Static Load,Back*	2400Pa
Max Power Current(lmp) [A]	6.90	6.98	7.06	7.14	7.22	NOCT	45±2°C
NOCT	Irradiance 800W/m², ambient temperature 20°C, wind speed 1m/s, AM1.5G					Safety Class	Glass H
