JA 340W PERC Half-Cell Module JAM60S10 320-340/PR™

Short Description:

Assembled with high-efficiency PERC cells, the half-cell configuration of the modules offers the advantages of higher power output, better temperature-dependent performance, reduced shading effect on the energy generation, lower risk of hot spot, as well as enhanced tolerance for mechanical loading.

Higher output power

Lower temperature coefficient

Less shading effect

Better mechanical loading tolerance

Send email to us

Product Detail

Product Tags

product-description1

Remark: customized frame color and cable length available upon request

SPECIFICATIONS

Cell	Mono
Weight	18.7kg±3%

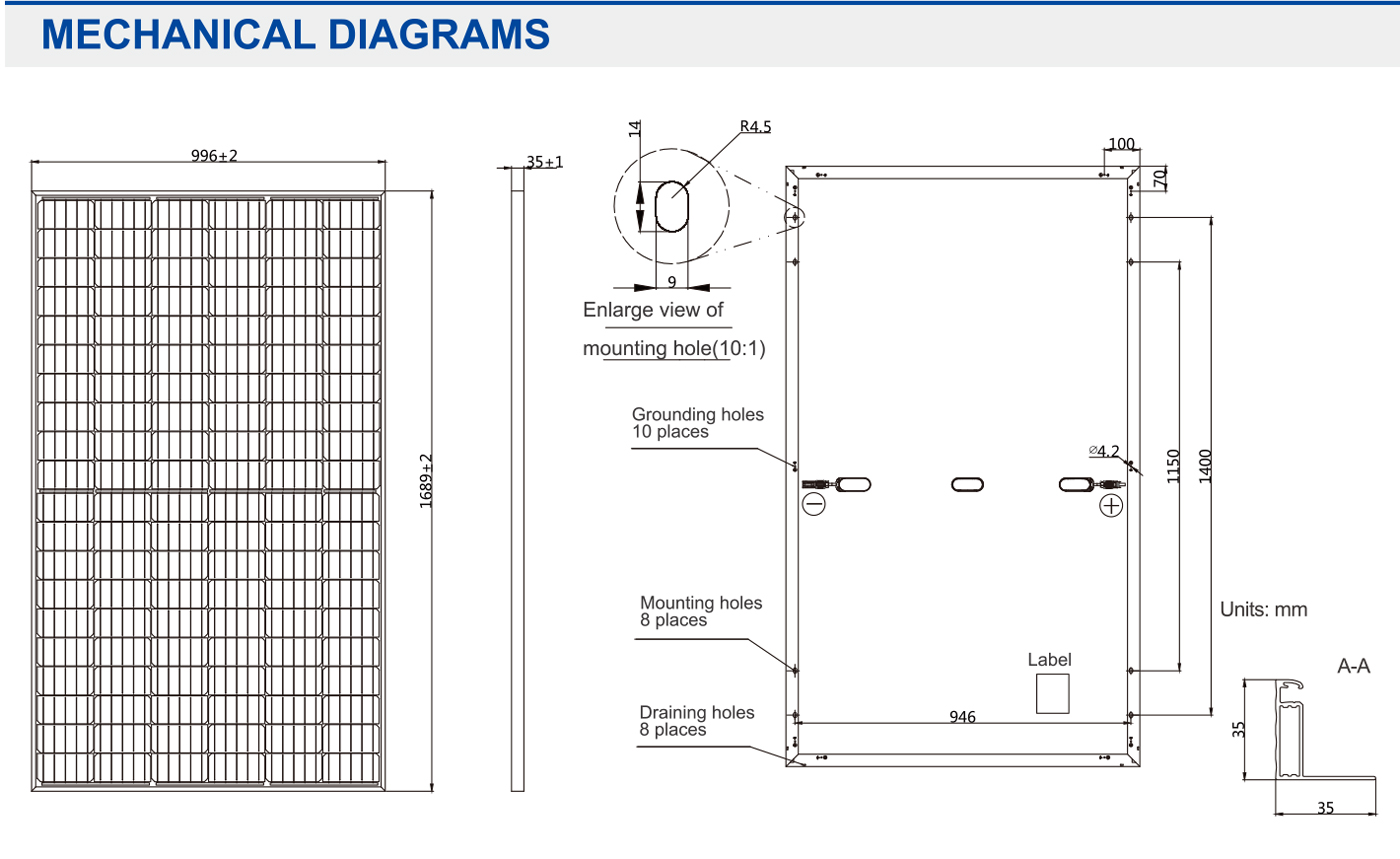

Dimensions	1689±2mmx996±2mmx35±1 mm
Cable Cross Section Size	4mm²
No. of cells	120(6x20)
Junction Box	IP68, 3 diodes
Connector	QC4.10(1000V) QC 4.10-35(1500V)
Cable Length	Portrait:300mm (+)/400mm(-);
(Including Connector) Landscape: 1000mm(+)/1000mm(-)
Packaging Configuration	31 Per Pallet

ELECTRICAL PARAMETERS AT STC

TYPE	JAM60S10 -320/PR	JAM60S10 -325/PR	JAM60S10 -330/PR	JAM60S10 -335/PR	JAM60S10 -340/PR
Rated Maximum Power(Pmax) [W]	320	325	330	335	340
Open Circuit Voltage(Voc) [V]	40.27	40.56	40.84	41.12	41.36
Maximum Power Voltage(Vmp) [V]	33.62	33.87	34.13	34.36	34.63
Short Circuit Current(lsc) [A]	10.16	10.23	10.30	10.38	10.46
Maximum Power Current(lmp) [A]	9.52	9.60	9.67	9.75	9.82
Module Efficiency [%]	19.0	19.3	19.6	19.9	20.2
Power Tolerance			0-+5W

Temperature Coefficient of Isc(ajsc)	+0.051 %/°C
Temperature Coefficient of Vbc(0_Voc)	-0.289%/°C
Temperature Coefficient of Pmax(v_Pmp)	-0.350%/°C
STC	Irradiance 1000W/m², cell temperature 25°C_J AM1.5G

Remark: Electrical data in this catalog do not refer to a single module and they are not part of the offer.They only serve for comparison among different module types.

ELECTRICAL PARAMETERS AT NOCT						OPERATING CONDITIONS
TYPE	JAM60S10 -320/PR	JAM60S10 -325/PR	JAM60S10 -330/PR	JAM60S10 JAM60S10		Maximum System Voltage	1000V/1500V DC(IEC)
TYPE	JAM60S10 -320/PR	JAM60S10 -325/PR	JAM60S10 -330/PR	-335/PR	340/PR	Maximum System Voltage	1000V/1500V DC(IEC)
Rated Max Power(Pmax) [W]	237	241	244	248	252	Operating Temperature	-40°C~+85°C
Open Circuit Voltage(Voc) [V]	37.15	3乙38	37.65	37.93	38.18	Maximum Series Fuse	20A
Max Power Voltage(Vmp) [V]	33.31	33.54	33.82	34.10	34.38	Maximum Static Load,Front	5400Pa
Short Circuit Current(lsc) [A]	8.14	8.20	8.25	8.30	8.36	Maximum Static Load,Back	2400Pa
Max Power Current(lmp) [A]	7.11	7.17	7.22	7.27	7.32	NOCT	45±2°C
NOCT	Irradiance 800W/m², ambient temperature 20°C, wind speed 1m/s, AM1.5G					Safety Class	Glass H
