JA Half-Cell Module JAP60S10 275-295W

Short Description:

The modules assembled with half cells not only generate more power output, but also perform better during daily operation as a result of lower temperature coefficient of power, along with reduced shading effect on the energy generation, lower risk of hot spot, and enhanced tolerance for mechanical loading.

Higher output power

Lower temperature coefficient

Less shading effect

Better mechanical loading tolerance


Product Detail

Product Tags

product-description1

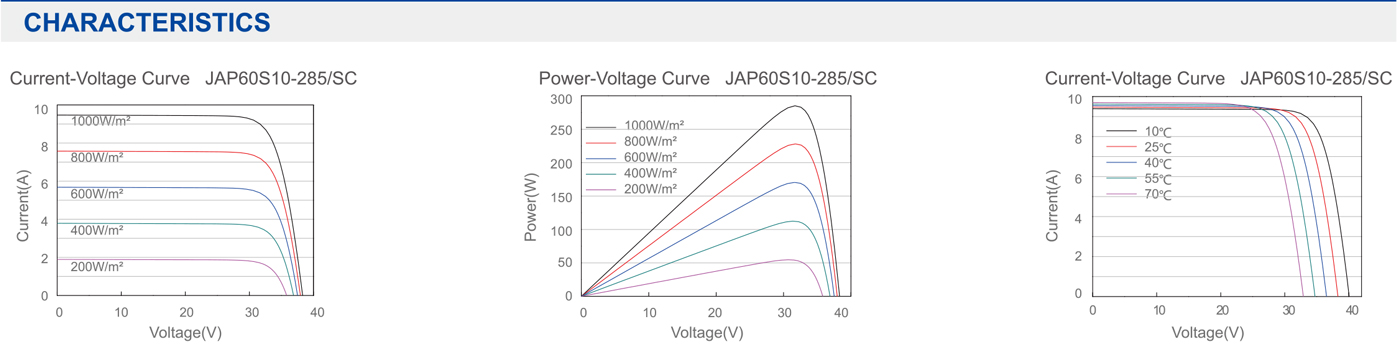

product-description2

Remark: customized frame color and cable length available upon request

SPECIFICATIONS

Cell

Poly

Weight

18.7kg±3%

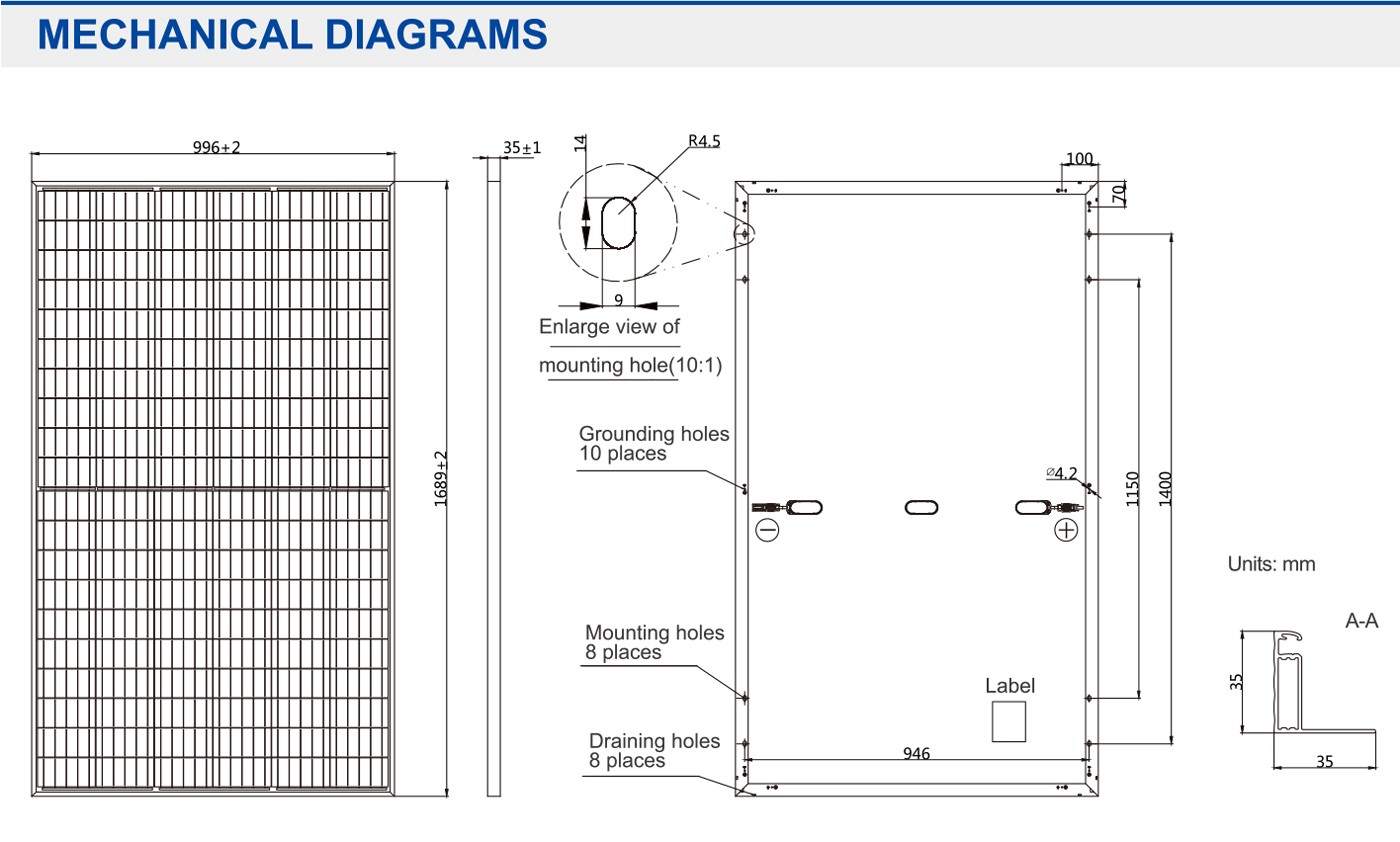

Dimensions 1689±2mmx996±2mmx35±1 mm
Cable Cross Section Size

4mm2

No. of cells

120 (6x20)

Junction Box

IP68, 3 diodes

Connector

QC4.10(1000V) QC 4.10-35(1500V)

Cable Length Portrait:300mm(+)/400mm(-);
(Including Connector) Landscape: 1000mm(+)/1 OOOmm(-)
Packaging Configuration 31 Per Pallet

ELECTRICAL PARAMETERS AT STC

TYPE

JAP60S10 -275/SC

JAP60S10 -280/SC

JAP60S10 -285/SC

JAP60S10 -290/SC

JAP60S10 -295/SC

Rated Maximum Power(Pmax) [W] 275

280

285 290 295
Open Circuit Voltage(Voc) [V] 37.95

38.14

38.31 38.48 38.65
Maximum Power Voltage(Vmp) [V] 31.22

31.47

31.71 31.91 32.14
Short Circuit Current(lsc) [A] 9.29

9.38

9.47 9.56 9.65
Maximum Power Current(lmp) [A] 8.81

8.90

8.99 9.09 9.18
Module Efficiency [%] 16.3

16.6

16.9

17.2 17.5
Power Tolerance

0-+5W

Temperature Coefficient of Isc(ajsc)

+0.054%/C

Temperature Coefficient of Vbc(0_Voc) -0.300%/C
Temperature Coefficient of Pmax(v_Pmp) -0.370%/C
STC

Irradiance 1000W/m2, cell temperature 25°C, AM1.5G

Remark: Electrical data in this catalog do not refer to a single module and they are not part of the offer.They only serve for comparison among different module types.

ELECTRICAL PARAMETERS AT NOCT

OPERATING CONDITIONS

TYPE

JAP60S10 -275/SC

JAP60S10 -280/SC

JAP60S10 -285/SC

JAP60S10 -290/SC

JAP60S10 -295/SC

Maximum System Voltage 1000V/1500V DC(IEC)
Rated Max Power(Pmax) [W] 204

208

212

216

220 Operating Temperature -40°C~+85°C
Open Circuit Voltage(Voc) [V] 36.75

36.90

37.05

37.23

37.40 Maximum Series Fuse 20A
Max Power Voltage(Vmp) [V] 29.39

29.59

29.78

29.96

30.14 Maximum Static Load,Front 5400Pa
Short Circuit Current(lsc) [A] 7.40

7.49

7.58

7.67

7.75 Maximum Static Load,Back 2400Pa
Max Power Current(lmp) [A] 6.94

7.03

7.12

7.21

7.30 NOCT 45±2°C
NOCT

Irradiance 800W/m2, ambient temperature 20°C, wind speed 1m/s, AM1.5G

Safety Class Glass H
product-description3
